Home » Radio Control Products » RC Cars, Trucks & Buggies » 1:8 4WD TRUCK

 Checkout
Product ID: OF34313
Manufacturer: OFNA Racing
ISBN: 0023705343135
OFNA Racing 34313 Multilator Power Start RTR
Discounts will be Applied at Checkout time.
Only applies to Quantity of Available IN STOCK items.
No backorders will be taken at discounted price.
Sold out items will return to regular price.
20% extra discount will be applied at Checkout time. (in stock only)
IN STOCK ships right now. (Limited quantity available. Discontinued item.)

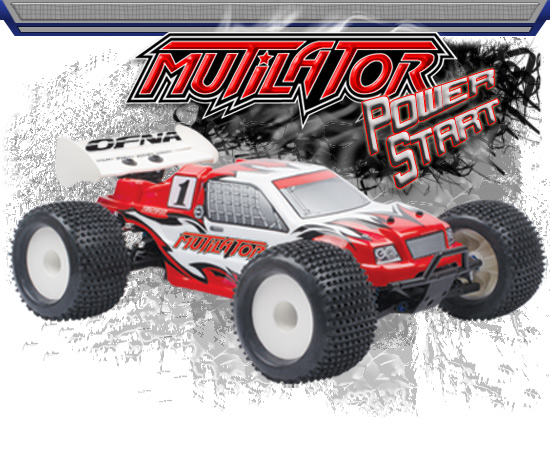

OFNA Racing 34313 Multilator Power Start RTR
  (Enlarge)
  • Description
  • Reviews
This is OFNA Racing 34313 the radio controlled, glow powered, 1:8 scale ready to run Ofna Mutilator Power Start Truggy.

FEATURES:
  • Chassis: 0.12 (3mm) thick aluminum hard anodized
  • Engine Starter: Electric shaft type
  • Engine: Ofna .28 cu in (4.6cc) slide valve carburetor, heavy duty foam air filter and glow plug
  • Exhaust: Polished aluminum dual chambered tuned pipe and header
  • Radio: Ofna 2-channel AM transmitter and receiver with SX-002 high torque servo and SX-001 standard servo
  • Radio Box: Low profile nylon fully enclosed box
  • Ball Bearings: Full set
  • Shocks: Four aluminum threaded Big Bore oil filled shocks w/blue springs 0.16 (4mm) thick aluminum shock towers
  • Fuel Tank: 4.9oz (145cc) flip top siphon type Ttnk
  • Clutch: 3-shoe, constructed of nylon
  • Transmission: Single speed
  • Main Gear: 62T steel spur gear
  • Differentials: Three, sealed with anodized aluminum center diff plate
  • Brake: Two fiberglass brake disks
  • Tires: LPR Bow-Tie
  • Width: 67.25mm (2.6)
  • Diameter: 148mm (5.8)
  • Hex: 17mm
  • Wheels: LPR White dish type w/17mm hex adapters
  • Body: Pre-painted truggy body with heavy duty nylon racing wing
  • Caster: Front and rear adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
  • Camber: Front and rear adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
  • Suspension: C-Hub
INCLUDES: Ofna Mutilator Power Start Truggy, .28 size engine w/electric power starter, pre-installed radio system w/high torque steering servo, pre-painted body, pre-mounted tires on white dish wheels, aluminum threaded shocks, instruction manual and decals, glow starter and fuel bottle

REQUIRES: Radio Batteries: 12 AA size, 8 for transmitter and four for receiver, D size battery for the included glow starter, Fuel: 2-cycle glow fuel with 10%-15% nitromethane, 16% lubricant

SPECS:
Chassis-
  1. Length: 21.5 (546mm)
  2. Width: 15.25 (413mm)
  3. Height: 7 (178mm)
  4. Weight: 9.25lbs (4195g)
  5. Wheelbase: 14.5 (368mm)
  6. Track: 13.5 (343mm)
Body-
  1. Length: 19.5 (495mm)
  2. Width: 7.5 (190mm)
  3. Height: 5.5 (140mm)
COMMENTS:
For Replacement Ball Bearings use:
Qty. ---- Size ---- Location ---- Qty. ---- Bearing Set
6 ---- 8x16mm ---- Front, Rear and Center Diffs ---- 3 ---- DTXC1585
4 ---- 8x16mm ---- Front and Rear gear boxes ---- 3 ---- DTXC1585
4 ---- 8x16mm ---- Front Knuckles ---- 2 ---- DTXC1585
4 ---- 8x16mm ---- Rear Hubs ---- 2 ---- DTXC1585
2 ---- 5x10mm ---- Clutch Bell ---- 1 ---- DTXC1535

Carburetor Needle Settings;
  • Master Needle Valve, 3-3-1/2 turns from closed
  • Low Speed Needle, Flush with ball end
  • Barrel Stop Screws (used to adjust idle) 1/16 gap
It is not possible to request a specific radio channel when ordering because they are supplied by the manufacturer at random.

Please continue checking back, pricing and availability are subject to change. Additional information will be amended when it becomes available. Thank you.
Por favor, continue revise de nuevo. Precios y disponibilidad estan sujetos a cambios. Informacion adicional se modificara cuando este disponible. Gracias.

Product Reviews (Please login to leave a review)

No Reviews For This Product.


Email a Friend
List Price: $799.95
Price: $437.49
