Product ID: OS11881
Manufacturer: O.S. Engines
ISBN: 4531028004979

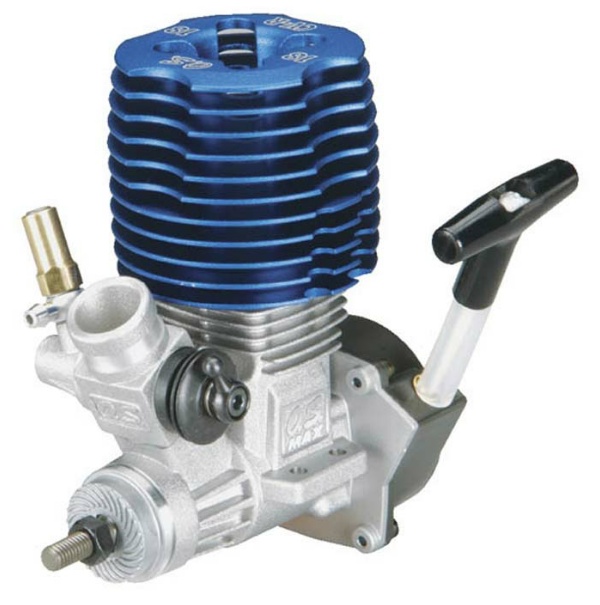

O.S. Engines 11881 .18CV-RX ABC 11G Slide Carb.
Not in Stock now but available will arrive soon after your order
O.S. Engines 11881 .18CV-RX ABC 11G Slide Carb.
  (Enlarge)
  • Description
  • Reviews
FEATURES:
  1. Larger displacement and more power in a .15 size crankcase
  2. Slide valve carburetor with two screwdriver-adjustable needles, mixture control screw, 360° fuel inlet, 6.5mm bore
  3. True ABC construction with CAD designed 3-port liner
  4. Machined, aluminum piston boosts performance and enhances durability
  5. Standard ball bearing suppported crankshaft with enlarged fuel portsfor smoother air and fuel flow
  6. Larger, thicker rear bearing handles racing loads with ease
  7. High volume #203 air filter assembly with two pre-oiled foam elements
  8. Satndard side exhaust
  9. Two year warranty
INCLUDES:
One O.S. Max .18CV-RX engine with, 11G carb, pull starter, #8 glow plug, air filter assembly with two elements, mounting spacers, four 3 x 14mm phillips head screws, instruction manual

REQUIRES:
  • Glow fuel for vehicles with 5%-30% nitromethane and no less than 18%lubricant content
  • Most of the fuels we carry meet or exceed the lubricant content required for optimum performance and maximum engine life. In the past, the conventional lubricant content used in fuel was 18%. Butwith new advanced technologies, fuels like Red Alert and O'Donnellfor example, have a better quality of lubricants even though the percentages of lubricant content are lower. These high-tech lubricants provide exceptional cooling and protection.
  • Fuel filter
  • Medium fuel tubing
SPECS: Bore: 0.63 (16.0mm)
Stroke: 0.59 (15.0mm)
Displacement: .18 cu in (3.0cc)
Practical RPM: 3000-32,000
Power Output: 1.35 PS/28,000 RPM
Weight without Muffler: 10.4oz (295.5g)
Width between mounting holes same side: 0.4 (11mm)
Width between mounting holes opposite side: 1.2 (31.4mm)
Crankcase width: 1.6 (40mm)
Distance from starter to drive hub: 2.9 (74.8mm)
Distance from starter to end of crankshaft: 3.4 (87.8mm)
Distance from center of crankcase to drive hub: 1.6 (41mm)
Height/bottom of crankcase to top of cylinder head: 4 (100.9mm)
Height/center of crankshaft to top of cyinder head: 3.2 (80.9mm)

Needle Settings: High Speed: 2.5 turns out from fully closed
Metering Needle (low speed): 1 turns in from flush
with ball link body
Throttle Stop Screw:.3mm-.5mm open from fully closed

BOX DIMENSIONS: 4.88 W. X 3.75 H. X 5.75 L.
BOX WEIGHT: .99 LBS.

Product Reviews (Please login to leave a review)

No Reviews For This Product.


Email a Friend
List Price: $279.99
Price: $149.99
