Product ID: OS11895
Manufacturer: O.S. Engines
ISBN: 4531028012691

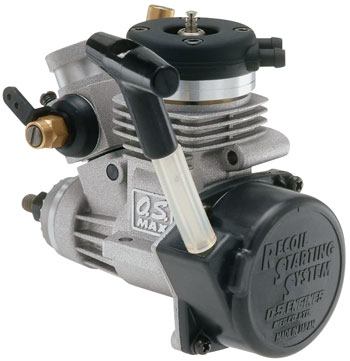

O.S. Engines 11895 .18CVR-MX ABC Marine PS 11J Carb.
Not in Stock now but available will arrive soon after your order
O.S. Engines 11895 .18CVR-MX ABC Marine PS 11J Carb.
  (Enlarge)
  • Description
  • Reviews
FEATURES:
  1. Recoil Starter
  2. Rotary type carburetor (11J OSMG3817) with 6.5mm bore
  3. Water cooled
  4. Side exhaust
  5. Delivers 11% more power than a .15 size engine and has the same mounting dimensions
INCLUDES: O.S. Max .18 CV-RM Marine Engine with Pull-Starter, #8 Glow PlugCarburetor, instruction manual

REQUIRES:
Fuel: O.S. suggests 10 to 30% nitro. However, they suggest startingwith 20% nitro and changing to a higher or lower nitro content if required. Fuel should also contain 18% lubricant.

SPECS: Displacement: 0.18 cu in (3.0cc)
Bore: 0.63 (16.0mm)
Stroke: 0.59 (15mm)
Practical RPM Range: 3000-32,000
Power Output: 1.35 hp @ 28,000 RPM
Weight: 8.21oz (232.6g)

Distance between mounting holes same side: 0.43 (11mm)
Distance between mounting holes opposite side: 1.2 (31.4mm)
Width of crankcase not including mounting flanges: 1 (25.6mm)
Width including mounting flanges: 1.5 (39mm)
Width including rear adapter (back plate): 1.6 (40mm)
Height bottom of crankcase to top of cylinder head: 2.6 (66mm)
Height bottom of mounting flanges/top of cylinder head: 2 (50.5mm)
Length from backplate to end of crankshaft: 2.7 (68mm)
Length from rear of recoil to end of crankshaft: 3.4 (87.8mm)
Length from cylinder centerline to front of drive washer: 1.6 (41mm)
Length form rear of recoil to front of drive washer: 2.9 (74.8mm)
Exhuast port mounting hole centers: 1.1 (27.5mm)
Distance from crankshaft centerline to top of head: 2 (50.5mm)
Distance/crankshaft centerline to exhaust centerline: 0.98 (25mm)
Crankshaft Threads: 5mmx0.8 pitch

COMMENTS: O.S. does not recommend running this engine in any salt water
environment. Under such conditions, it is difficult to prevent
the engine from becoming corroded and eventually inoperable.

OS suggests using a 36-40mm diameter prop with 1.2-1.6 pitch.

NEEDLE SETTINGS: High Speed Needle: 2 turns OUT from closed position
per page 17 of manual.
Low Speed Needle (aka: Mixture Control Valve): Rotate the screw
until the head is flush with the carb body. Then turn the screw IN
exactly 1/2 turn per page 23 of manual.

BOX DIMENSIONS: 4.88 W. X 3.25 H. X 4.88 L.
BOX WEIGHT: .76 LBS.
