Product ID: OS11943
Manufacturer: O.S. Engines
ISBN: 4531028005167

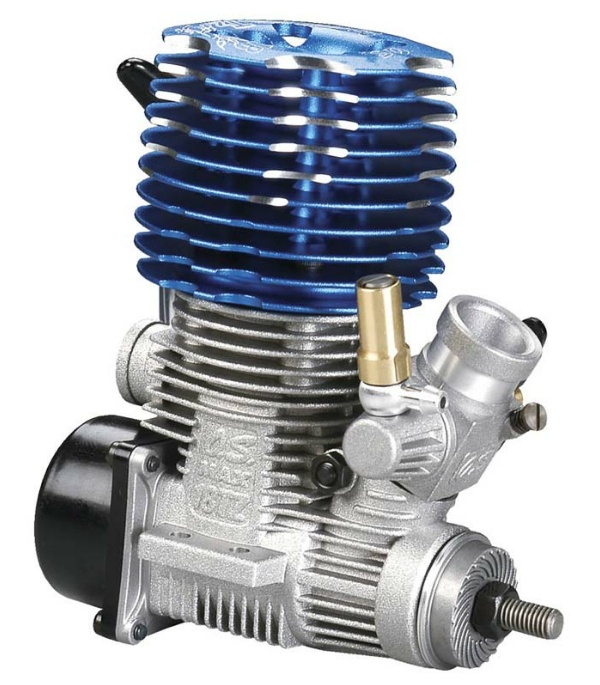

O.S. Engines 11943 .18 TZ-TX ABC 11L Rotary Carb.
Not in Stock now but available will arrive soon after your order
O.S. Engines 11943 .18 TZ-TX ABC 11L Rotary Carb.
  (Enlarge)
  • Description
  • Reviews
FEATURES:
  1. Oversize case fins dissipate heat to keep engine temperatures lower
  2. Five port cylinder liner for increased air flow
  3. 12mm rear bearing lessens vibration and allows engine to handle moretorque
  4. Rotary carb
  5. Small diameter recoil design for easier manifold installation
  6. Super-hot turbo P3 glow plug for more power and improved fuel economy
  7. Rear exhaust with a round port
  8. Two-piece head design (inner head or head button and outer head)
INCLUDES: One 18TZ turbo engine with threaded shaft, 11L rotary carburetor,
P3 glow plug, exhaust seal o-ring, drive washer and instructions

REQUIRES:
  • Muffler (exhaust system) depending on vehicle
  • Starting equipment
  • Fuel: 5% - 20% nitromethane content
  • Most of the fuels we carry meet or exceed the lubricant contentrequired for maximum engine performance and long life. In the past conventional lubricant content used in fuel was 18%. But with newadvanced technologies, fuels like Red Alert and O'Donnell have abetter quality of lubricants even thought the percentages oflubricant content are lower. These high tech lubricants provide exceptional cooling and protection.
SPECS: Displacement: 0.183 cu in (3.0cc)
Bore: 0.629 (16.0mm)
Stroke: 0.590 (15.0mm)
Practical RPM: 3,000-34,000
Output: 1.8ps @ 29,000 RPM
Weight: 9.3oz (264g)

Distance between mounting holes same side: 0.43 (11mm)
Distance between mounting holes opposite side: 1.2 (31.4mm)
Distance from end of crankshaft to drive washer: .051 (13mm)
Distance from center of engine to front of crankcase: 1.4 (34.8mm)
Distance/bottom of mounting flanges/top of cylinder head:3.2(81.2mm)
Distance/back of recoil to front of drive washer: 2.96 (75.43mm)
Width of mounting flanges: 1.5 (39mm)
Length of exhaust flange: 0.24 (6mm)


COMMENTS:
This Engine will work in the 2.5 T-Maxx And Revo with the addition of the 18TM adapter plate (OSMG8984) and (P) shaft crank (OSMG4450) and some modification to make rotary carb work.

NEEDLE SETTINGS:
- High Speed: 2 turns out from fully closed per page 18 of manual
- Mixture Control Valve: Slotted head of screw is flush with the
ball link body per page 23 of manual

BOX DIMENSIONS: 4.75 W. X 3.75 H. X 5.75 L.
BOX WEIGHT: .89 LBS.

Product Reviews (Please login to leave a review)

No Reviews For This Product.


Email a Friend
List Price: $349.99
Price: $199.99
