Product ID: OS12352
Manufacturer: O.S. Engines
ISBN: 4531028018013
O.S. Engines 12352 .25LA Non-Ring 20H Carb E3020 Muffler.
Not in Stock now but available will arrive soon after your order

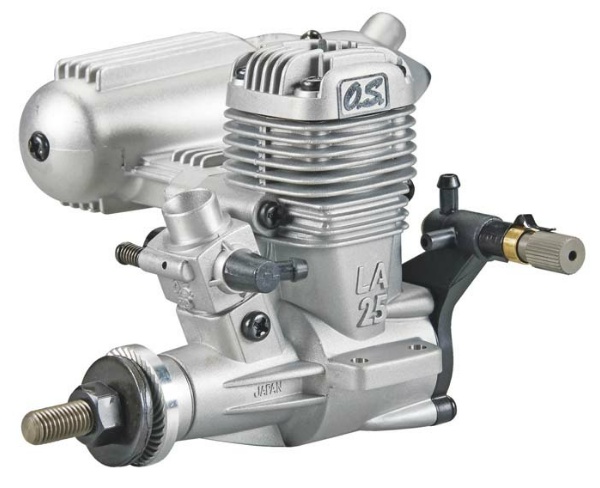

O.S. Engines 12352 .25LA Non-Ring 20H Carb E3020 Muffler.
  (Enlarge)
  • Description
  • Reviews
FEATURES:
  • One-piece natural finish crankcase
  • Two bronze crankshaft bushings (sometimes called Oilite bearings)
  • Schnuerle porting (Schnuerle scavenging)
  • Side exhaust
  • Nylon backplate
  • #20H carb with remote needle valve assembly
INCLUDES: Expansion-Style Muffler #E-2030
.25LA Engine w/Carb and A3 glow plug
Instructions, mount template, decal sheet
Two 3x27mm screws to bolt muffler to engine

REQUIRES: Glow Fuel with 5-15% Nitromethane and 20% (minimum) lubricant content
Glow starter, plug wrench and field equipment

SPECS: Construction: Aluminum 1-piece crankcase, piston, cylinder head,
crankshaft, connecting rod, and crankshaft. Chrome-plated
Brass cylinder.
Displacement: 4.07cc (0.249 cu. in.)
Bore: 18.0mm (.709)
Stroke: 16.0mm (.630)
Horsepower: 0.6 BHP at 15,000 RPM
Weight: 7.0oz w/o muffler (9.5oz w/ muffler)
Length: 67.5mm (2.65) distance/backplate to front of drive washer
89.5mm (3.52) distance from backplate to prop adapter
Width: 29mm (1.14) width of engine neglecting mounting flanges
Distance Between Mounting Holes Same Side: 14.4mm (.56)
Distance Between Mounting Holes Opposite Side: 33mm (1.29)
Height: 74.5mm (2.93) from bottom of mount tab/top of cylinder head
Crankshaft Thread Size: 1/4-28
Recommended Props: Break In: 9x5
Trainer and Sport Models: 9x5, 9x6
Practical RPM Range: 2,500 - 16,000 RPM

High Speed Needle: 1.5 turns out from fully closed
Low Speed Needle: Tip of the needle half way across the small hole
in the FRONT of the carb body.

BOX DIMENSIONS: 4.88 W. X 3.75 H. X 6.25 L.

BOX WEIGHT: .89 LBS.

Product Reviews (Please login to leave a review)

No Reviews For This Product.


Email a Friend
List Price: $119.99
Price: $79.99
