Product ID: OS12361
Manufacturer: O.S. Engines
ISBN: 4531028018181

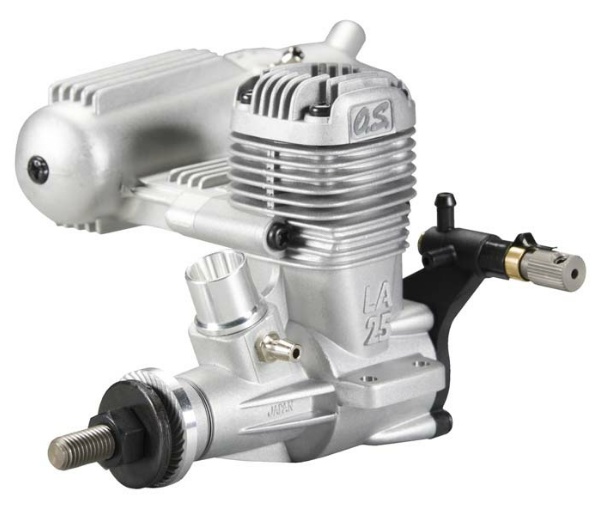

O.S. Engines 12361 .25LA-S C/L Non-Ring E2030 Muffler.
Not in Stock now but available will arrive soon after your order
O.S. Engines 12361 .25LA-S C/L Non-Ring E2030 Muffler.
  (Enlarge)
  • Description
  • Reviews
FEATURES:
  1. LA-S series engines Control Line engines replace the Carburetor witha Venturi that keeps the engine running at a constant speed
  2. Remote Needle Valve reduces chance of injury from spinning props
  3. Nylon backplate mount and ratchet spring help hold settings againstcreep caused by vibration
  4. An O-ring helps seal the needle from fuel and air leaks
  5. Heavy-duty webbing reinforces the one-piece crankcase in high stressareas.
  6. TWO YEAR WARRANTY against manufacturing defects in parts and workman-ship
INCLUDES: One .25LA-S Control Line Engine with #E-2030 Muffler
Two 2.5 x 24mm Phillips head muffler mounting screws
#A3 Glow Plug (OSMG2690)
Decal Sheet
Instruction Manual

REQUIRES: Fuel: 10% to 20% Nitro and 18% lubricant content is recommended
Prop: Break in: 9x6
Aerobatic and Sport: 9x6, 10x5

SPECS: Displacement: 4.07cc (.249 cu in)
Bore: 18mm (.709)
Stroke: 16mm (.630)
Output: 0.6 bhp @ 15,000 RPM
Practical RPM: 2,000 - 16,000 RPM
Weight: 185.5g (6.54oz)
Crankshaft size: 1/4-28
Distance between mounting tabs: 1.89 (48mm)
Distance between mounting holes on opposite side: 1.46 (37mm)
Distance between mounting holes on same side: .59 (15mm)
Width of crankcase below mounting tabs: 1.10 (28mm)
Height from bottom of crankcase to top/cylinder head: 2.93 (74.4mm)
Length from end of crankshaft to backplate: 3.43 (87.1mm)

Needle Settings: High Speed: 1.5 turns out from fully closed
Mixture Control (low speed): Tip of the needle half
way across the small hole in the front
of the carb

BOX DIMENSIONS: 4.88 W. X 3.75 H. X 6.25 L.
BOX WEIGHT: .84 LBS.

Product Reviews (Please login to leave a review)

No Reviews For This Product.


Email a Friend
List Price: $119.99
Price: $79.99
