Tamiya 58646 Konghead 6x6 G6-01 Chassis

Home
»
»
»

Tamiya 58646 Konghead 6x6 G6-01 Chassis
This is the 1/18 scale electric powered, radio controlled, Konghead 6x6 Off-Road Truck Kit from Tamiya.

1 of 4 Enlarge
Product ID TA58646
Manufacturer Tamiya
ISBN 4950344586462

Tamiya 58646 Konghead 6x6 G6-01 Chassis

Year Model : 2018
  • Description
  • Reviews

Tamiya 58646 Konghead 6x6 G6-01 Chassis
This R/C model assembly kit creates the Konghead 6x6. With its big sleeper cab, flat nose and radiator grille, its polycarbonate body takes inspiration from U.S. trailer heads. Metal-plated air cleaner and muffler parts give an authentic finish. Marking stickers are included to decorate the body with style. The new G6-01 chassis is a newly-designed 6WD unit that can take on slopes of up to 40 degrees. See below for much more information!
About the Model

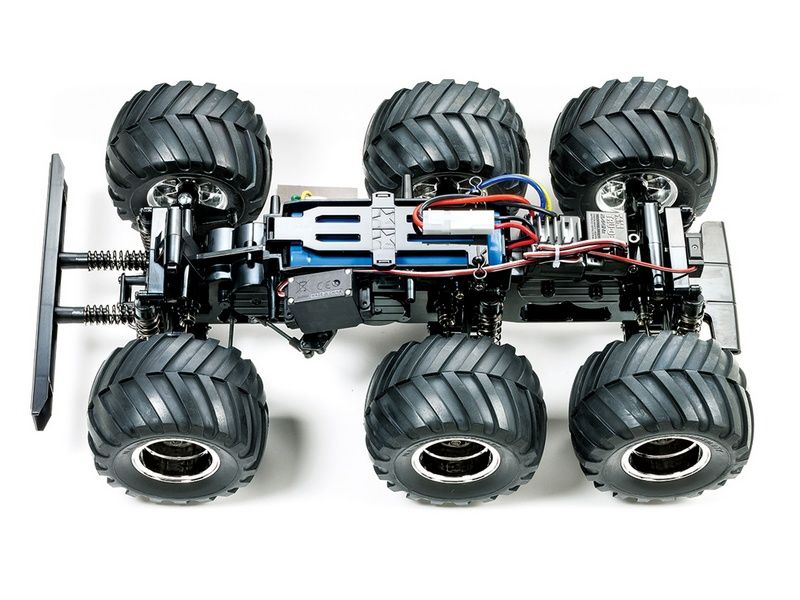

  • The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system
  • Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears
  • The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers
  • 6-wheel double wishbone suspension is fitted with friction dampers, while chrome-plated deep rim wheels are paired with 113mm diameter tires
  • A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response
  • With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable

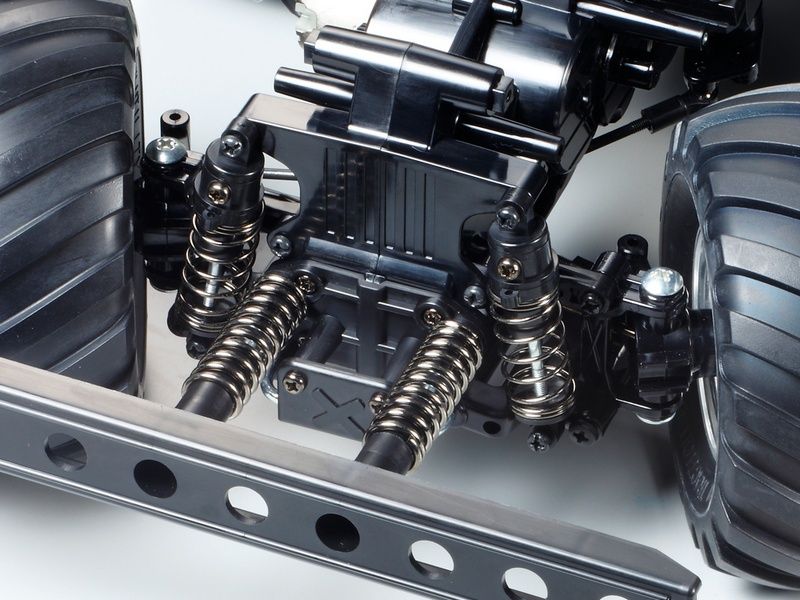

★Double wishbone suspension is paired with friction dampers for excellent off-road performance.

★Smooth handling thanks to the 2-piece steering tie-rod and steering servo positioned on the left.

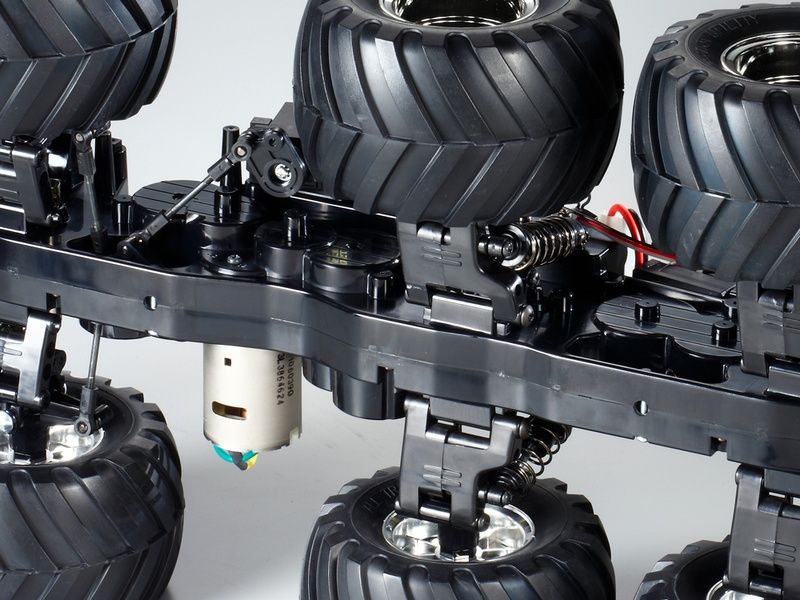

★The motor powers three differential gears inside the monocoque, in a gear-driven 6WD setup.

Specifications

  • Length: 453mm / Width: 270mm / Height:234mm
  • Wheelbase: 173mm + 126mm / Tread: 200mm (Front, Center and Rear) / Tire Width/Diameter: 68mm/113mm
  • Monocoque Frame
  • Gear-Driven 4WD
  • 3-Bevel Type Differentials
  • 2-Piece Steering Tie-Rod
  • 6-Wheel Independent Double Wishbone Suspension
  • Gear Ratio = 18.03:1
  • Type 540 Motor (ESC Sold Separately)

Required Items

  • 2-Channel R/C Unit with ESC
  • Battery Pack & Charger
  • R6/AA/UM3 batteries for transmitter

Product Reviews (Please login to leave a review)

No Reviews For This Product.

Price: $145.08
