Marklin 39060 Class 66 Diesel Locomotive

Home
»
»

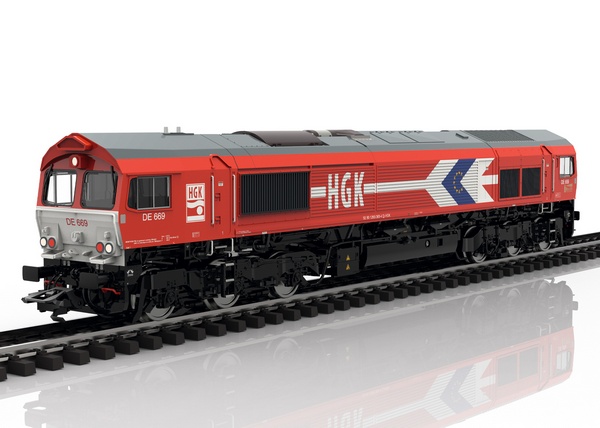

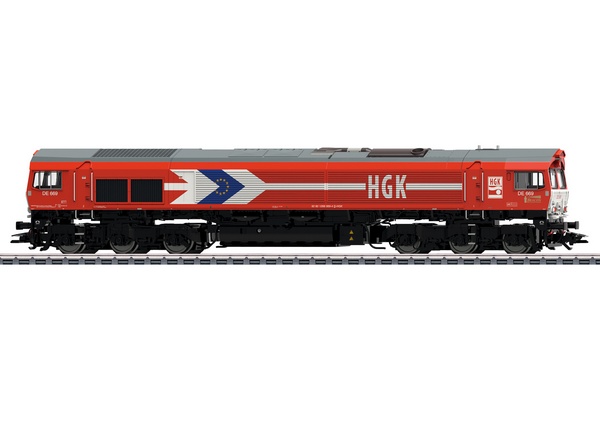

Marklin 39060 Class 66 Diesel Locomotive
Prototype: Type JT42CWR diesel electric freight locomotive, better known as Class 66. Cologne Harbor and Freight Service, Inc. (HGK) diesel locomotive. The locomotive looks as it did in 2012.

1 of 2 Enlarge
Product ID 39060
Manufacturer Marklin
ISBN 4001883390604

Marklin 39060 Class 66 Diesel Locomotive


Price seen below is ...
Year Model : 2020

Free IN STOCK Continental US USPS Standard Ground shipping orders over $ 150.00 (pays Insurance) Credit Cards Only, no PayPal

  • Description
  • Reviews

Marklin 39060 Class 66 Diesel Locomotive
Model: The locomotive has an mfx+ digital decoder and extensive sound and light functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. 4 axles powered by means of cardan shafts. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. When the headlights are off at both ends, the "Double 'A' Light" function is on. The cab lighting can be controlled digitally. The control desk lighting can be controlled digitally. Maintenance-free, warm white and red LEDs are used for the lighting. The locomotive has a factory-installed smoke generator. It also has many separately applied details. The locomotive has detailed buffer beams. Brake hoses that can be installed on the locomotive are included. End skirting is included that can also be installed on the buffer beam. Length over the buffers approximately 24.7 cm / 9-3/4".
Diesel Locomotive Class 66 (EMD JT42CWR) In 1985, the American builder Electro-Motive Division (EMD), a 100% subsidiary of General Motors (GM), built an affordable diesel locomotive for the first time for the British market. The result was a six-axle diesel electric unit of the type EMD JT26CW-SS in a squared off design and with a 2,460 kilowatt / 3,297 horsepower GM 16-645E3C diesel motor. It was designated as the class 59 and its external dimensions fit the smaller British clearance gauge. As a basis, EMD used the type SD40-2 American diesel locomotives built in large quantities, which were very reliable due to their proven, simple construction. EMD initially overhauled and improved the class 59 in the mid-Nineties for British rail companies as externally largely unchanged locomotives with a 2,350 kilowatt / 3,150 horsepower GM motor, type 12N-710G3B-EC as the class 66 (Type JT42CWR), which initially went into operation starting in 1998 on the British EVU. Its diesel motor powered an M AR8/CA6 type three-phase generator, which provided the electrical power for the six series-wound commutator traction motors, which were mounted in the trucks and drove the wheelsets by means of an axle-hung gearbox. Their three-axle trucks had radially adjustable end wheelsets and a middle wheelset with side play. The two end cabs were connected with each other by a corridor through the engine room. The engineer sat on the left side instead of the right because the locomotives were originally designed only for use Great Britain. With a maximum speed of 120 km/h / 75 mph, they could keep up with other trains on electrified main lines. Due to tougher exhaust regulations starting January 1, 2009, in 2005 this type series had to be overhauled in order to comply with the exhaust standard in effect at that time, EU Level IIIa. The result by the end of 2005 was the lower emissions variation as JT42CWRM (in Great Britain: JT42CWR-T1) with an improved 2,420 kilowatt / 3,244 horsepower type 12-710G3B-T2 diesel motor. The locomotives also had better sound insulation in the cabs, optional installation of an air conditioning system, a third door on one side due to partial removal of the continuous side corridor in the locomotive body, two-part side cab windows, as well as larger ventilation fan louvres. The first railroad company to bring the class 66 to Germany was the Cologne Harbor and Freight Service, Inc. (HGK), today RheinCargo, Inc. (RCH). In 1999, this railroad company initially leased 2 locomotives as road numbers DE 61 and 62, which it then bought in 2000/01. At almost the same time, the class 66 came into other European countries and you can thus presently find these locomotives in France, Belgium, Denmark, the Netherlands, Luxembourg, Norway, Poland, and Sweden. Forty-one of the JT42CWRM even reached Egypt. By the time production was stopped in 2016, 651 units had been delivered to European customers, 436 units as JT42CWR and 215 units as JT42CWR(M/-T1). Many class 66 locomotives belong to leasing companies such as Porterbrook Leasing Company, Eversholt Rail, Beacon Rail Leasing, or Macquarie European Rail, which lease the locomotives to third parties in numerous European countries. Paint schemes and lettering therefore vary a great deal and change constantly.
Highlights:

  • New tooling.
  • Cab lighting can be controlled digitally.
  • Control desk lighting can be controlled digitally.
  • Factory-installed smoke generator.

Features:

  • Metal frame and locomotive body.
  • mfx+ digital decoder
  • DCC decoder
  • Built-in sound effects circuit.
  • Triple headlights and two red marker lights that change over with the direction of travel.
  • Marklin close couplers in standard pocket with guide mechanism.
  • Era 6

Warning: adults only

  Control
Unit
Mobile
Station
Mobile
Station 2

Central
Station 1/2

Central Station 3/2*
Mobile Station 2**
Headlight(s) · · · · ·
Smoke generator · · · · ·
Diesel locomotive op. sounds · · · · ·
High Pitch Horn · · · · ·
Direct control · · · · ·
Sound of squealing brakes off   · · · ·
Rear Headlights off   · · · ·
Low Pitch Horn   · · · ·
Front Headlights off   · · · ·
Engineer’s cab lighting     · · ·
Blower motors     · · ·
Light Function     · · ·
Compressor     · · ·
Letting off Air     · · ·
"Switcher Double ""A"" Light"     · · ·
Sanding         ·
Low Pitch Horn         ·
High Pitch Horn         ·
Switching maneuver         ·
Coupler sounds         ·
Replenishing fuel         ·
Coupler sounds         ·
Product Reviews (Please login to leave a review)
No Reviews For This Product.
List Price: $469.99
Price: $412.28
IN STOCK. (This is a Discontinued item.) Ships now
