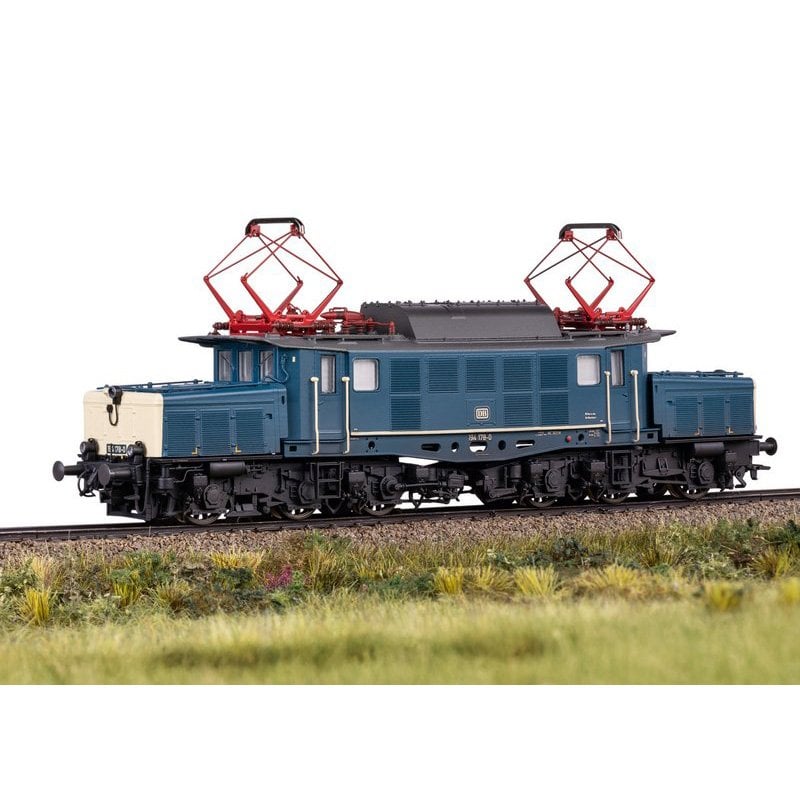

Marklin 39994 Class 194 Electric Locomotive
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It has controlled high efficiency propulsion with a flywheel, centrally mounted. Drive mounted on two axles in each truck. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive Ends 2 and 1 can be turned off separately. When the headlights at both ends are off, then the double “A” light function is on. An oncoming train light changes over with the direction of travel and can be controlled digitally. Maintenance-free, warm white and red LEDs are used for the lighting. There is a buffer capacitor. The locomotive has separately applied grab irons. The interior details of the cabs and engine room are done in relief. There is a figure of an engineer seated in Cab 1. The locomotive is lightly weathered. Brake hoses and prototype coupler imitations are included for separate installation on the locomotive. A postcard with an image of the locomotive is also included. Length over the buffers 21.4 cm / 8-3/8“
One-time series.
Properties:
-
Marklin exclusive special model - produced in a one-time series
-
Metal frame and locomotive body
-
mfx+ digital decoder
-
DCC decoder
-
Built-in sound effects circuit
-
Triple headlights and two red marker lights that change over with the direction of travel
-
Marklin close couplers in standard pocket with guide mechanism
-
Era IV
-
Buffer capacitor
Digital Functions:
|
Control Unit
|
Mobile Station
|
Mobile Station
|
Central Station 1/2
|
Central Station 3/2*
Mobile Station 2** |
Headlight(s) |
• |
• |
• |
• |
• |
Engineer’s cab lighting |
• |
• |
• |
• |
• |
Steam locomotive op. sounds |
• |
• |
• |
• |
• |
Locomotive whistle |
• |
• |
• |
• |
• |
Engineer’s cab lighting |
• |
• |
• |
• |
• |
Special light function |
|
• |
• |
• |
• |
Headlight(s): Cab2 End |
|
• |
• |
• |
• |
Whistle for switching maneuver |
|
• |
• |
• |
• |
Headlight(s): Cab1 End |
|
• |
• |
• |
• |
Direct control |
|
|
• |
• |
• |
Sound of squealing brakes off |
|
|
• |
• |
• |
Blower motors |
|
|
• |
• |
• |
Blower motors |
|
|
• |
• |
• |
Sound of Couplers Engaging |
|
|
• |
• |
• |
Warning announcement |
|
|
• |
• |
• |
Pantograph Sounds |
|
|
• |
• |
• |
Brake Compressor |
|
|
|
|
• |
Letting off Air |
|
|
|
|
• |
Sanding |
|
|
|
|
• |
Conductor's Whistle |
|
|
|
|
• |
Station Announcements |
|
|
|
|
• |
Doors Closing |
|
|
|
|
• |
Compressor |
|
|
|
|
• |
Squeaking sounds from wheels |
|
|
|
|
• |
Station Announcements |
|
|
|
|
• |
Station Announcements |
|
|
|
|
• |
Blower motors |
|
|
|
|
• |
Operating Sounds 1 |
|
|
|
|
• |
Switching maneuver |
|
|
|
|
• |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
