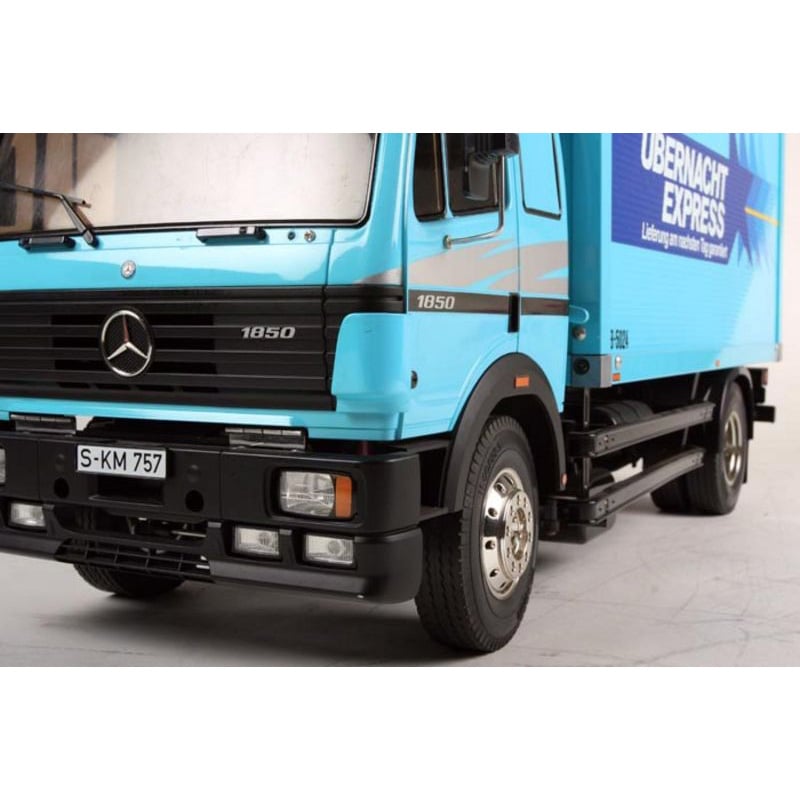

Tamiya 56307 RC Mercedes Benz 1850L

Home
»
»
»

Tamiya 56307 RC Mercedes Benz 1850L

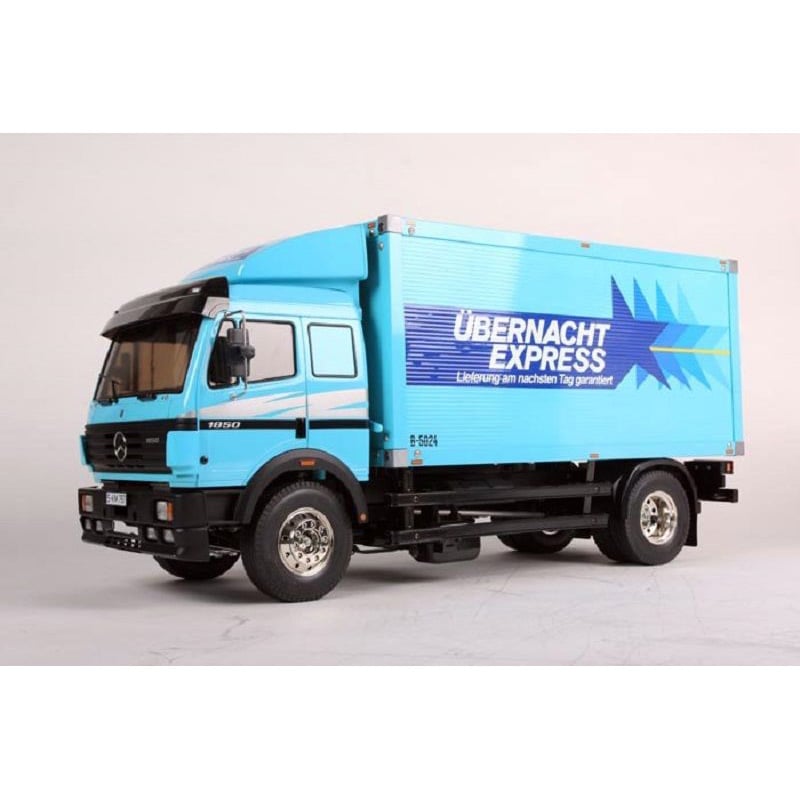

This is the 1/14 Scale Tractor Truck by Tamiya. This is a radio control KIT that requires assembly.

1 of 9 Enlarge
Product ID TA56307
Manufacturer Tamiya
ISBN 4950344563074

Tamiya 56307 RC Mercedes Benz 1850L

  • Description
  • Specifications
  • Reviews
  • Related

Tamiya 56307 RC Mercedes Benz 1850L

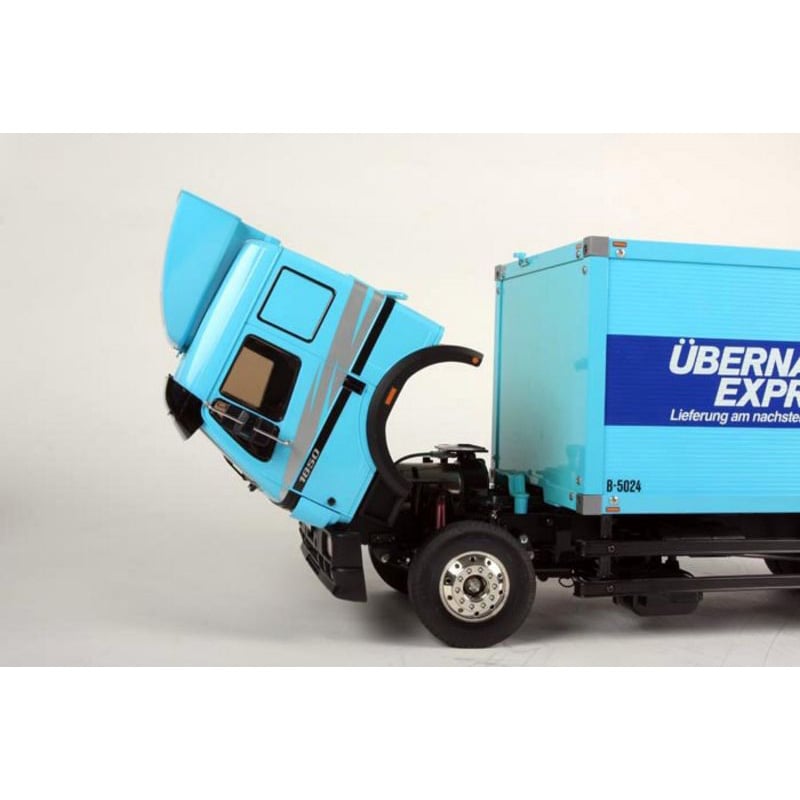

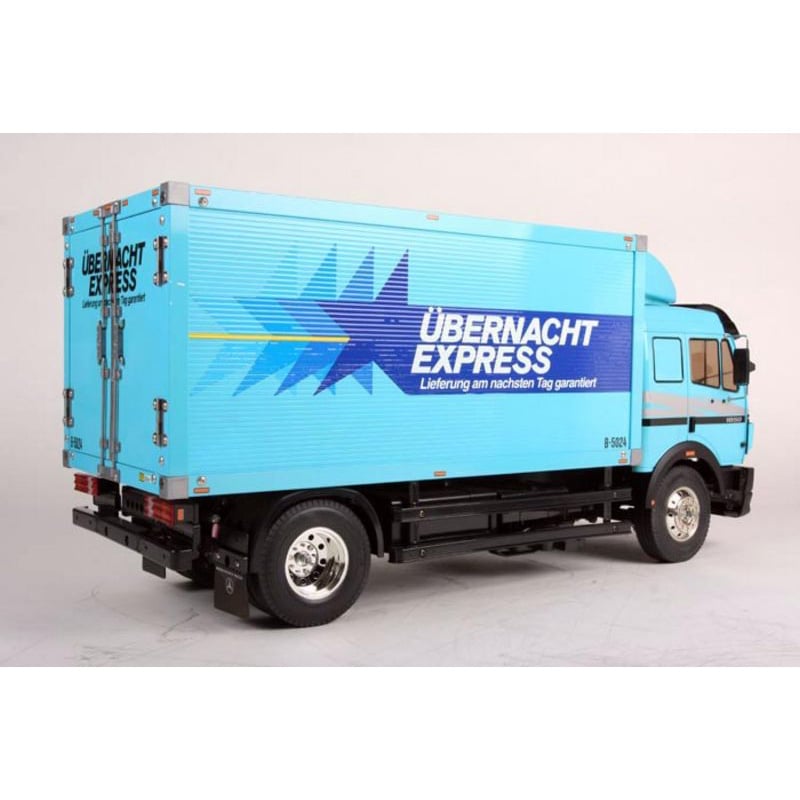

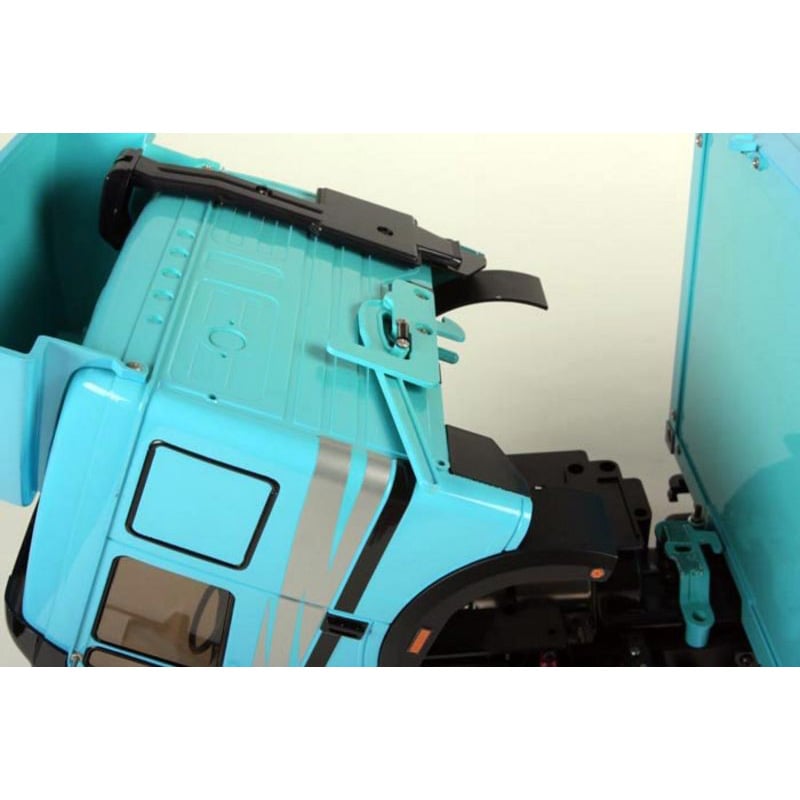

Description: The 1850L delivery truck is regarded as a new trend setter with its aerodynamically sophisticated appearance and extremely reliable mechanics. Tamiya"s model of the Mercedes-Benz 1850L realistically captures the looks of the full-sized truck.

Features:

  • 3-speed transmission with constant mesh gears

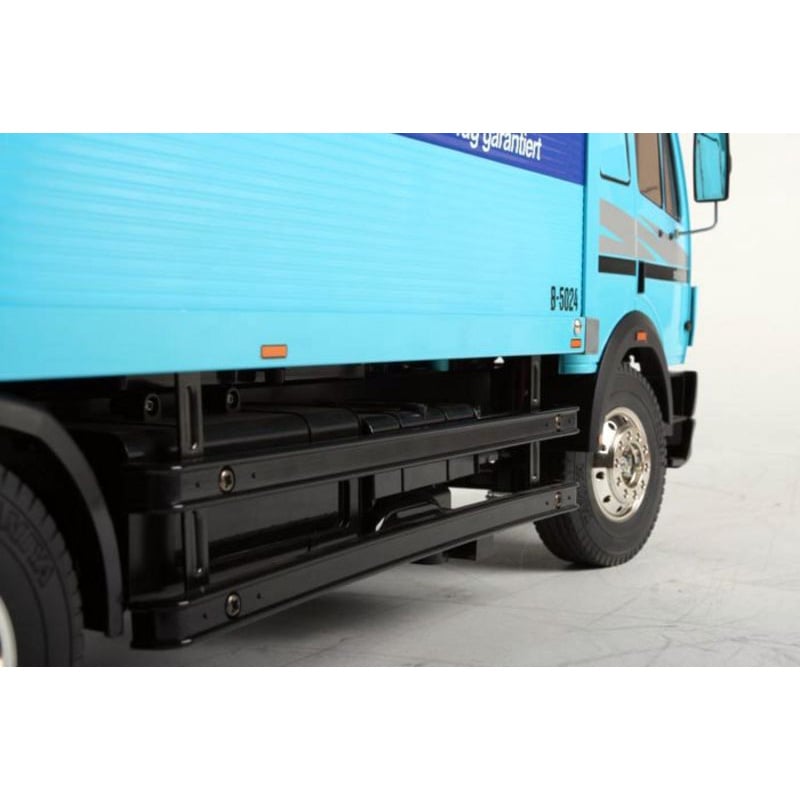

  • Metal rail chassis Scale suspension with heavy duty metal leaf-springs and coil spring dampers
  • Propeller-shaft driven rear axles (both axles are used to drive the truck)

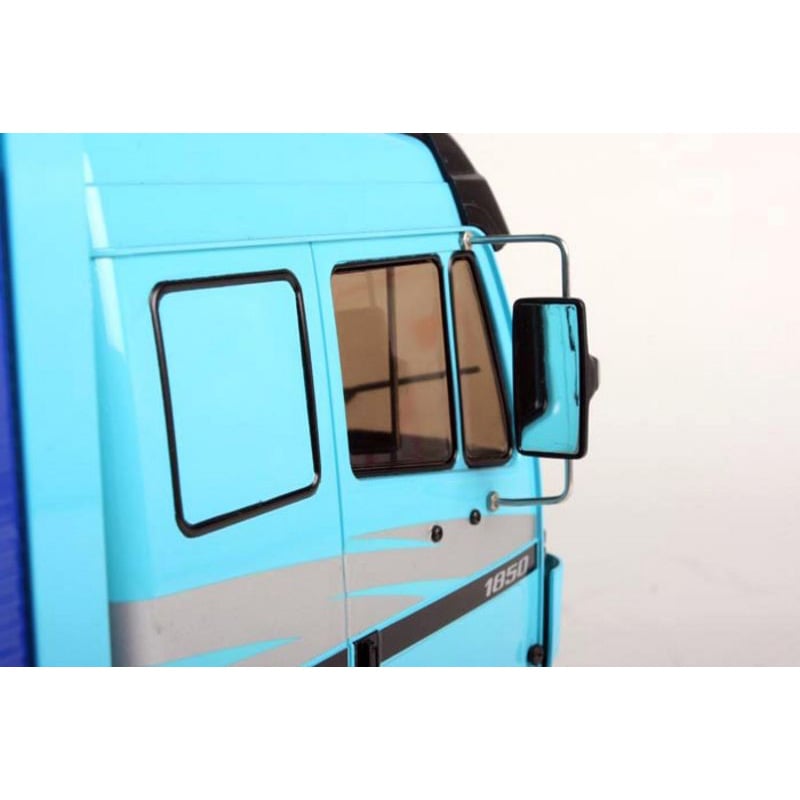

  • Numerous scale body accessories including metal grab rails and side mirror supports, metal dual exhaust pipes and chrome plated parts (grille, fuel tanks, side steps, horns, wipers, visor, rims, bumpers, light mounts, mirrors and tire guards)

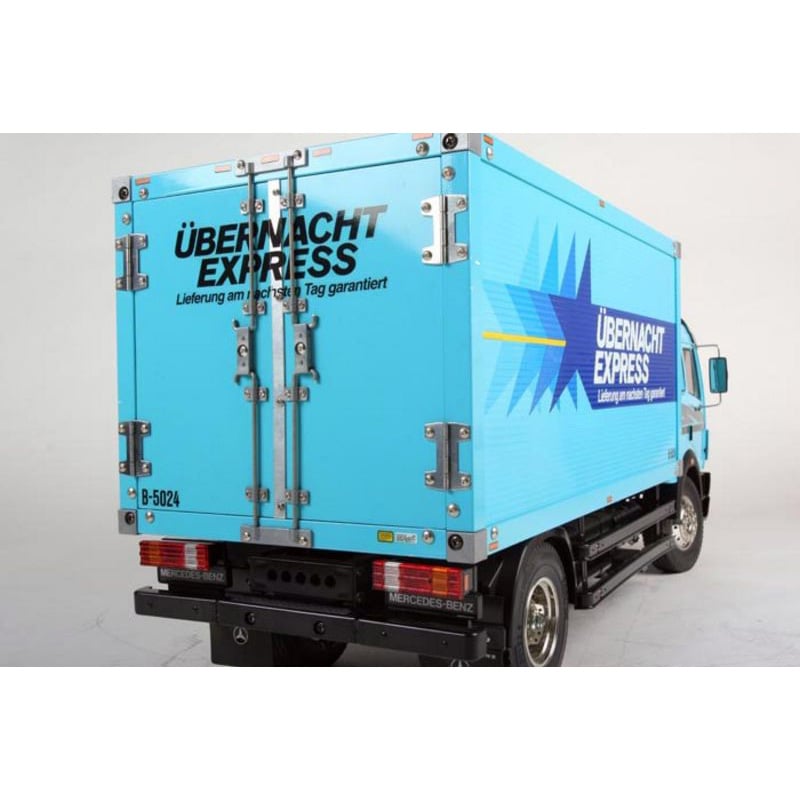

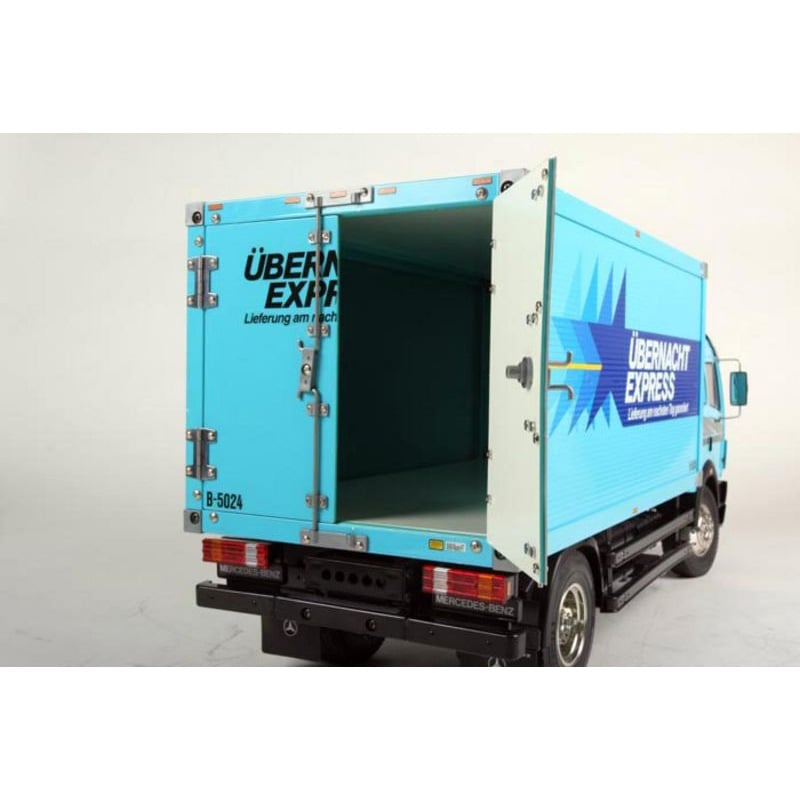

  • Built-in Box trailer made of high quality aluminum
  • Oilite bearings (bushings).

Includes:

  • Injection molded body (White) and truck interior
  • 10 scale appearance rims and tires
  • 540 motor Decal sheet (with license plate decal for bumpers)
  • Mud flaps
  • Illustrated instructions

Requires:

  • Radio: 4-channel with 4-channel receiver and analog trim functions
  • Servos: Two standard size (1-steering, 1-shift)
  • Electronic Speed Control: Tamiya TEU302BK recommended, do not use the Tamiya TEU101BK or the TEU104BK
  • Battery: 6-cell flat pack (or 7-cell hump)
  • Charger for battery pack

Specs:

  • Length: 22.36"
  • Width: 7.95"
  • Gear Configuration: Low (1st) gear ratio: 1:32.49 Middle (2nd) gear ratio: 1:17.66 Top (3rd) gear ratio: 1:10.66

Comments: The Tamiya Multi Function Control Unit is not included and provides many different truck related sound effects.

Both vehicle types require a 4 channel stick type radio for full function. If you're going to outfit your vehicle with one of our multifunction units (MFU), you will need to choose a analog radio. Shifting into gear is extremely easy once your transmission is adjusted correctly.

Our Semi trucks and Highlifts use 3speed transmissions for more maneuverability and true scale realism. Whether you're hauling a big load or climbing some rough terrain, the ability to shift into low gear can make the difference. High speed runs are no problem once you kick it into 3rd gear, when its time to move out!

Below you will see the basic concept on how the servo moves the transmission into all three gears. It is best to get the transmission adjusted with your trims centered and only using the collar on the transmission rod to adjust final increments. This will allow for the best operation if you're using a MFU unit.

*Make sure to use loctite on the grub screw in the collar to prevent having to readjust the transmission again.

*Taking a little extra time to set the transmission up will provide you with better performance and less adjustments down the road.

 Type Detail
Scale 1/14
Construction type Assembly kit
Terrain use On-road
Drive-train 2-axle semi
Drive type 3-speed
Drive line Solid axle
Differential type Gear
Suspension Leaf spring
Steering mechanism Bell-crank
Shock damper Friction damper
Shock damper material Aluminum
Tire type Rubber
Tire tread Radial
Body material ABS Plastic
Chassis material Aluminum
Electronic Speed Control (ESC) Not Included
ESC model N/A
LED Light buckets Yes
LED lights No
Motor 540-brushed type
Bearings Metal and plastic bushings
Adjustable camber Fixed
Adjustable toe angles Fixed
Adjustable ground clearance Fixed
Adjustable gear ratio Fixed
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Length: 22.36 inches (568mm) Width: 7.95 inches (202mm)
Special feature 2 Wheelbase: 14.17 inches (360mm)
Special feature 3 Tread F/R: 156/138mm
Special feature 4 Tire Width: F/R both 22mm
Special feature 5 Weight: 8.84 lbs. (4010g)
Special feature 6 Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Special feature 7 Wheels & Tires: Chrome/Radial
Special feature 8 Built-in Box trailer made of high quality aluminum.
Requires A 7.2 battery & charger
Requires B 4-channel radio gear
Requires C Electronic speed control
Requires D TS plastic model paint
